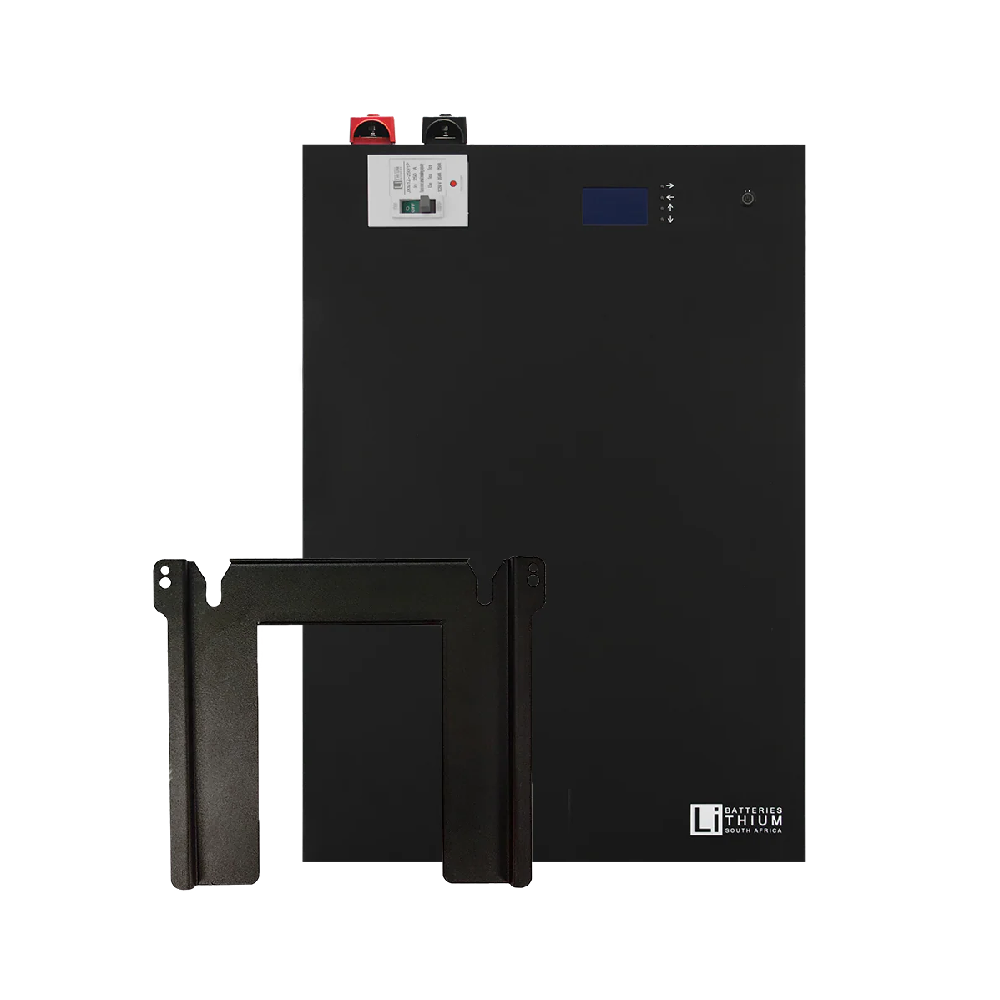

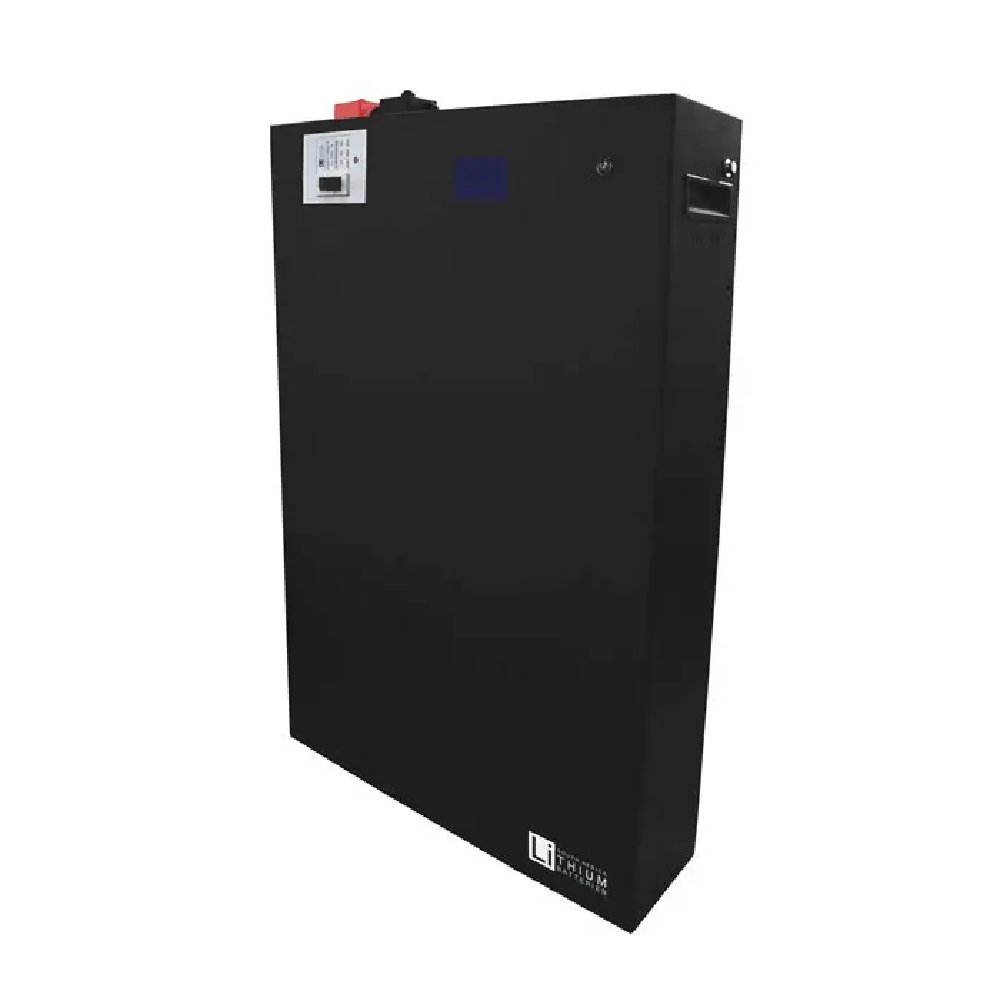

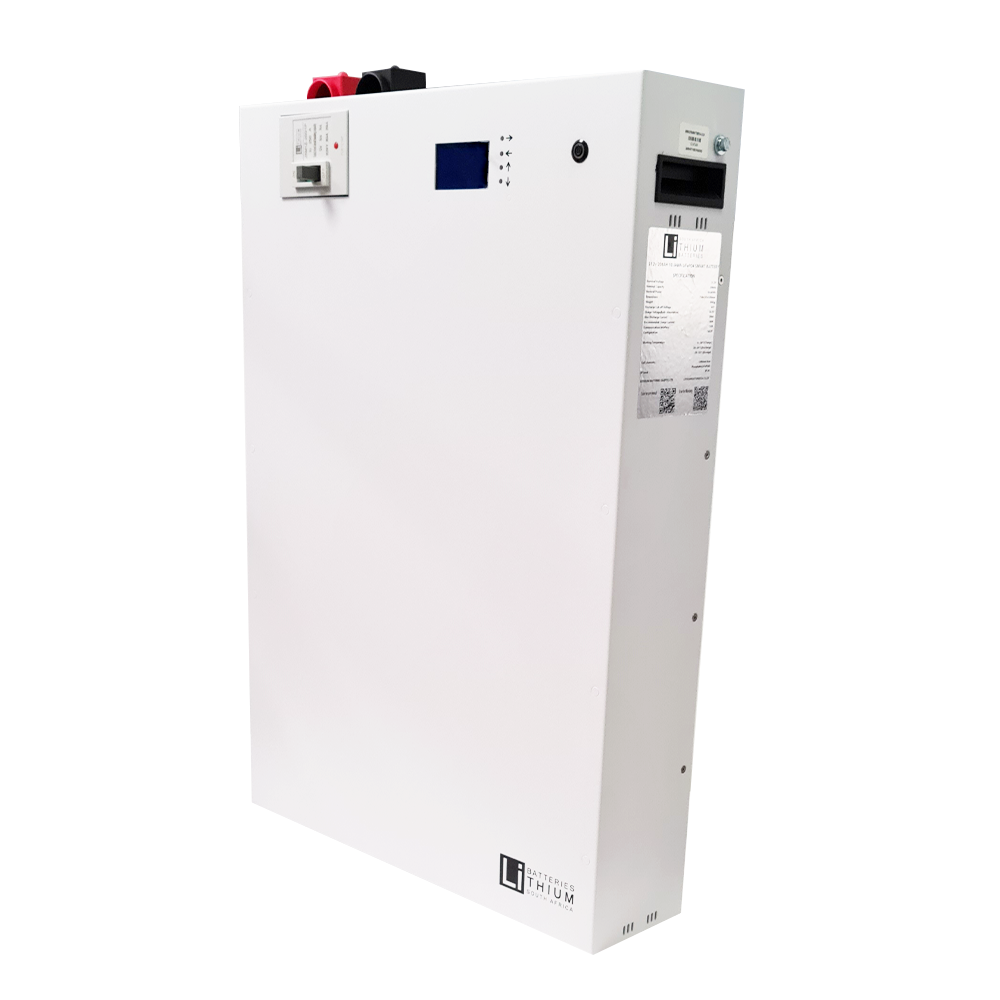

10.6kWh LBSA 51.2V 208Ah LiFePO4 WALL MOUNT
10.6kWh LBSA 51.2V 208Ah LiFePO4 WALL MOUNT
Take Control of Your Energy Independence
The LBSA 10.6kWh 51.2V 208Ah LiFePO₄ Wall-Mount Battery is a high-capacity, heavy-duty energy storage powerhouse engineered by Lithium Batteries South Africa. Specifically designed for demanding residential and commercial solar or UPS systems, this premium low-voltage battery combines cutting-edge safety features with a compact, wall-mounted footprint to deliver exceptional backup runtime and uninterrupted peace of mind.
Built with top-tier Lithium Iron Phosphate (LiFePO4) prismatic cells, it boasts superior thermal stability, zero maintenance, and an extensive lifecycle that ensures your home or business stays smoothly powered through extended outages or off-grid setups.
Key Features
-
Massive Power Reserve: Packs a formidable 10.6kWh of total capacity with a 200A maximum discharge rate, easily managing large household or commercial startup loads.
-
Advanced Smart BMS: The integrated Battery Management System continuously monitors cell health, balances voltage, and provides multi-layered protection against over-charging, over-discharging, over-current, and extreme temperatures.
-
Seamless Inverter Integration: Features advanced CAN Bus protocol to talk directly with industry-leading low-voltage hybrid inverters for real-time monitoring and peak system efficiency.
-
Scalable Architecture: Easily connect multiple packs in parallel to seamlessly grow your power grid alongside your evolving energy demands.
-
Ultra-Durable Cycle Life: Engineered to last, delivering ≥80% capacity even after 4,800 full cycles (100% DOD) at 25°C, backed by a comprehensive 10-year warranty.
-
Space-Saving Design: Premium aesthetic with a ultra-sturdy wall-mount profile that organizes your power room without cluttering valuable floor space.
Technical Specifications
| Parameter | Specification Details |
| Model | LBSA 51.2V 208Ah 10.6kWh Wall Mount |
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell Configuration | 16S 2P (3.2V 104Ah Prismatic Cells) |
| Nominal Power | 10.6 kWh |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 208 Ah |
| Max. Continuous Discharge | 200 A (1C Discharge) |
| Recommended Charge Current | 100 A |
| Charge Voltage (Bulk/Absorb) | 56.2 V |
| Discharge Cut-off Voltage | 44 V |
| Cycle Life | ≥4,800 cycles @ 100% DOD, 25°C |
| Dimensions (L x W x H) | 750 mm x 135 mm x 520 mm |
| Weight | ~86 kg |
| IP Rating | IP20 (Indoor installation) |
Smart Inverter Compatibility
Equipped with plug-and-play CAN Bus and RS485 communication interfaces, the LBSA battery seamlessly syncs with leading inverter brands, including:
-
Sunsynk / Deye
-
Victron Energy
-
Growatt
-
Luxpower
-
GoodWe
-
Solis
-
SMA
Important Notice: To protect your investment and comply with warranty guidelines, this product must be installed by a qualified electrician or certified solar technician in adherence to local wiring regulations and standards.
