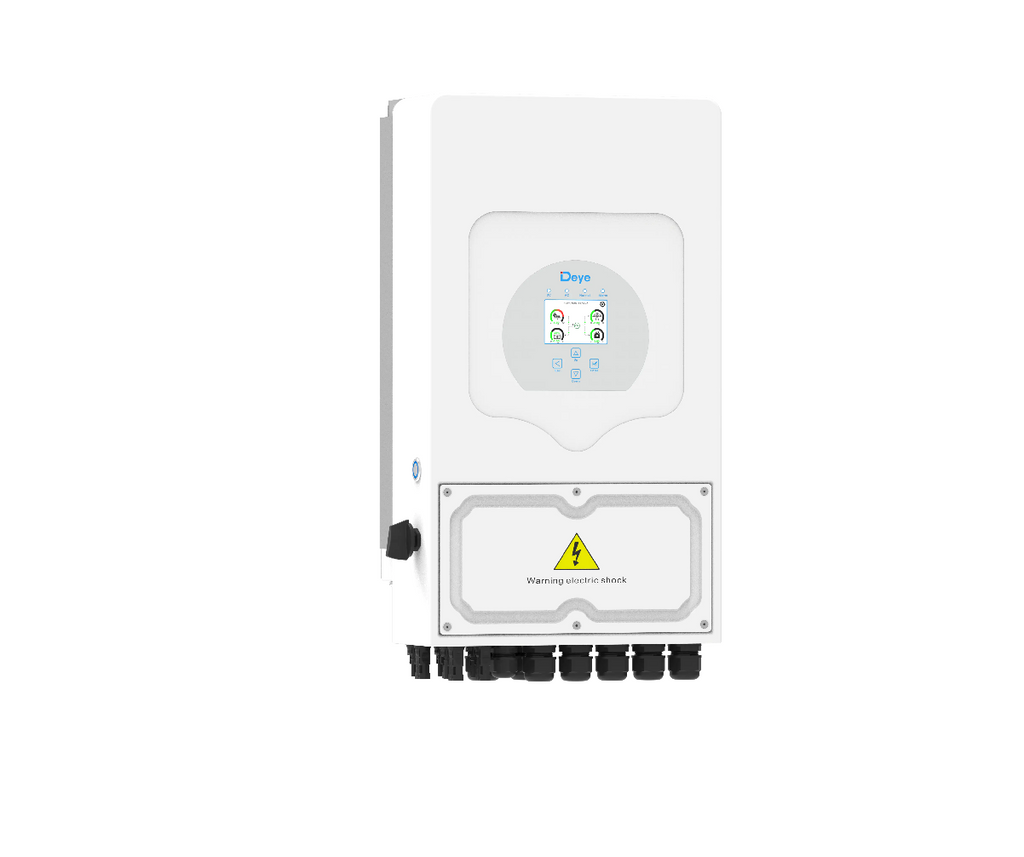

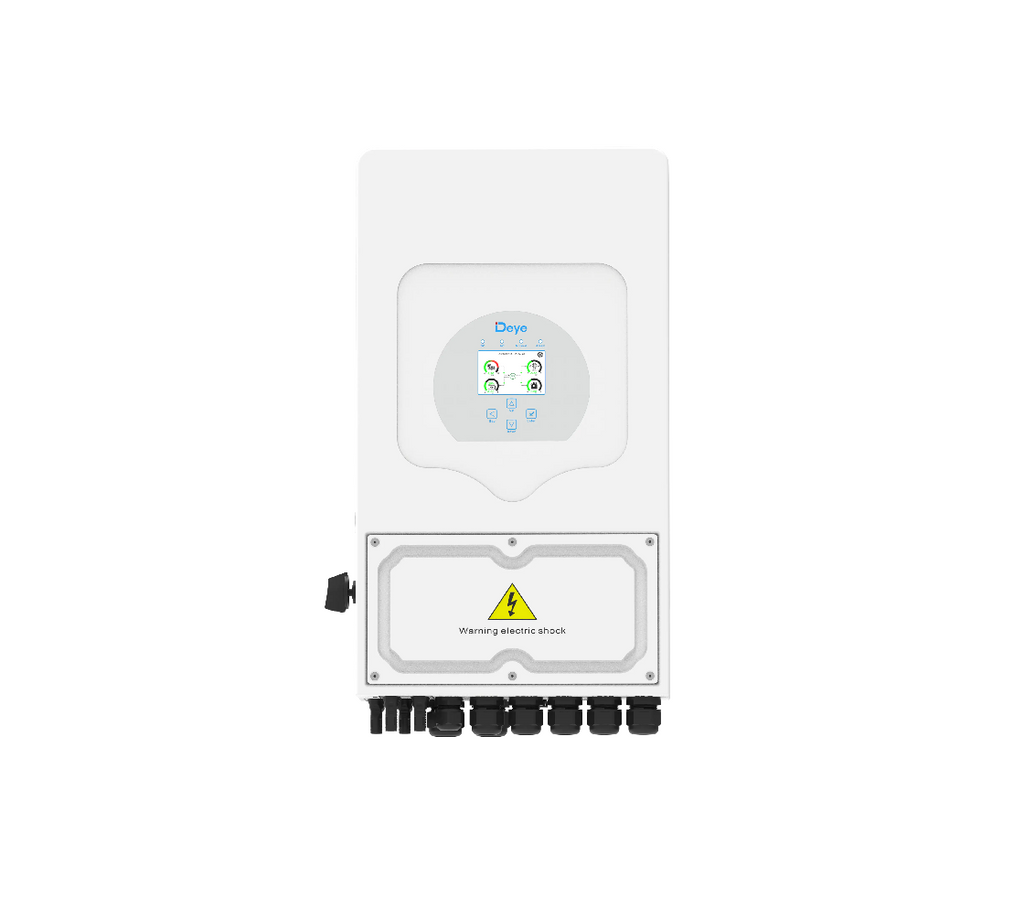

10kW Deye Single Phase LV Hybrid Inverter (SUN-10K-SG05LP1-EU)

The Deye SUN-10K-SG05LP1-EU is a premium 10kW single-phase low-voltage hybrid inverter designed for residential and small commercial solar installations. Combining intelligent energy management with industry-leading efficiency, it seamlessly integrates solar PV, 48V battery storage, the utility grid, and generator backup into one powerful energy solution.

Featuring dual MPPT trackers, up to 210A battery charging/discharging capability, and support for parallel operation of up to 16 units, this inverter provides exceptional flexibility for expanding solar systems. Its IP65-rated enclosure, ultra-high efficiency, and advanced monitoring capabilities make it ideal for both indoor and outdoor installations.

Key Features

• 10kW single-phase hybrid inverter
• Compatible with 48V lithium-ion and lead-acid batteries
• Dual MPPT design for maximum solar harvest
• Supports on-grid, off-grid and hybrid operation
• AC coupling for retrofitting existing solar systems
• Parallel operation of up to 16 inverters
• Generator integration with intelligent charging control
• Up to 210A battery charge/discharge current
• Six programmable battery charging/discharging time periods
• Colour touchscreen LCD display
• Remote monitoring via Wi-Fi, LAN, Bluetooth, GPRS or 4G (optional)
• IP65-rated enclosure for indoor and outdoor installation
• Intelligent air cooling with ultra-low noise operation

Technical Specifications

PV (Solar Input)

• Rated AC Output Power: 10,000W
• Maximum PV Access Power: 20,000W
• Maximum PV Input Power: 16,000W
• Number of MPPT Trackers: 2
• Strings per MPPT: 1 + 1
• Maximum PV Input Voltage: 500V DC
• MPPT Voltage Range: 150–425V DC
• Start-up Voltage: 125V DC
• Rated PV Input Voltage: 370V DC
• Maximum Operating PV Input Current: 26A + 26A
• Maximum Short-Circuit Current: 34A + 34A

Battery

• Battery Type: Lithium-ion or Lead-acid
• Nominal Battery Voltage: 48V
• Battery Voltage Range: 40–60V
• Maximum Charge Current: 210A
• Maximum Discharge Current: 210A
• Lithium Battery BMS Communication: CAN / RS485
• Charging Strategy: Self-adaptive to Battery Management System (BMS)

AC Output

• Rated Output Power: 10,000W
• Maximum Continuous AC Output Power: 11,000W
• Peak Backup Power: 20,000W (10 seconds)
• Rated Output Voltage: 220/230V AC
• Frequency: 50/60Hz
• Grid Connection: Single Phase (L + N + PE)
• Power Factor: 0.8 leading to 0.8 lagging
• Total Harmonic Distortion (THD): <3%

Efficiency

• Maximum Efficiency: 97.6%
• European Efficiency: 96.5%
• MPPT Tracking Efficiency: >99%

Protection Features

• PV Reverse Polarity Protection
• AC Overcurrent Protection
• AC Overvoltage Protection
• Short Circuit Protection
• Thermal Protection
• Islanding Protection
• Ground Fault Monitoring
• Residual Current Detection (RCD)
• DC Insulation Monitoring
• Integrated DC Isolator
• Type II DC Surge Protection
• Type II AC Surge Protection
• Optional AFCI (Arc Fault Circuit Interrupter)

Communication & Monitoring

• RS485
• RS232
• CAN Bus
• Wi-Fi (Optional)
• Bluetooth (Optional)
• LAN (Optional)
• GPRS / 4G Monitoring (Optional)

General Specifications

• Cooling Method: Intelligent Air Cooling
• Noise Level: <30dB
• Ingress Protection: IP65
• Operating Temperature: -40°C to +60°C (derating above 45°C)
• Relative Humidity: 0–100%
• Maximum Installation Altitude: 2,000m
• Dimensions (W × H × D): 330 × 580 × 232mm
• Weight: 24.9kg
• Inverter Topology: Non-Isolated
• Warranty: 5 Years (extendable to 10 years depending on region and installation)

Ideal Applications

• Residential solar power systems
• Homes with battery backup
• Load-shedding and uninterrupted power supply
• Small commercial premises
• Off-grid and hybrid energy systems
• Generator-assisted solar installations
• Existing solar systems requiring AC coupling
