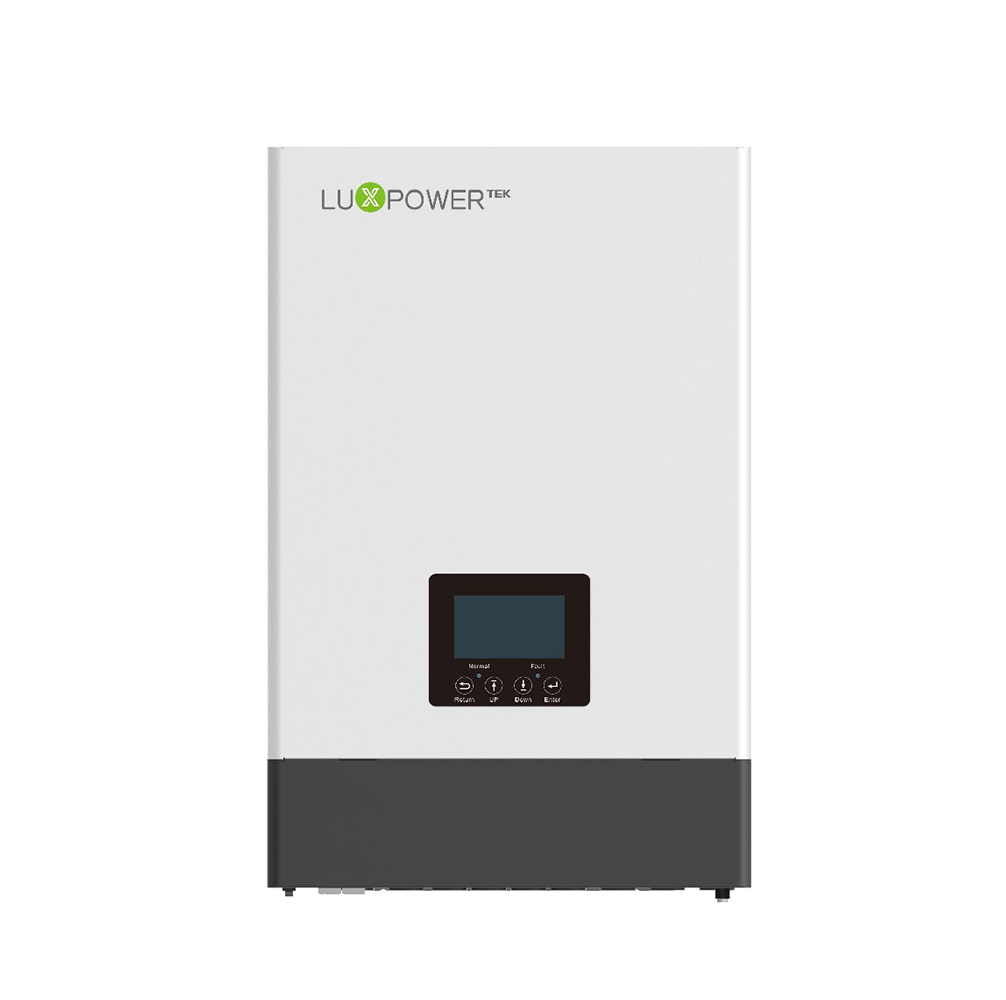

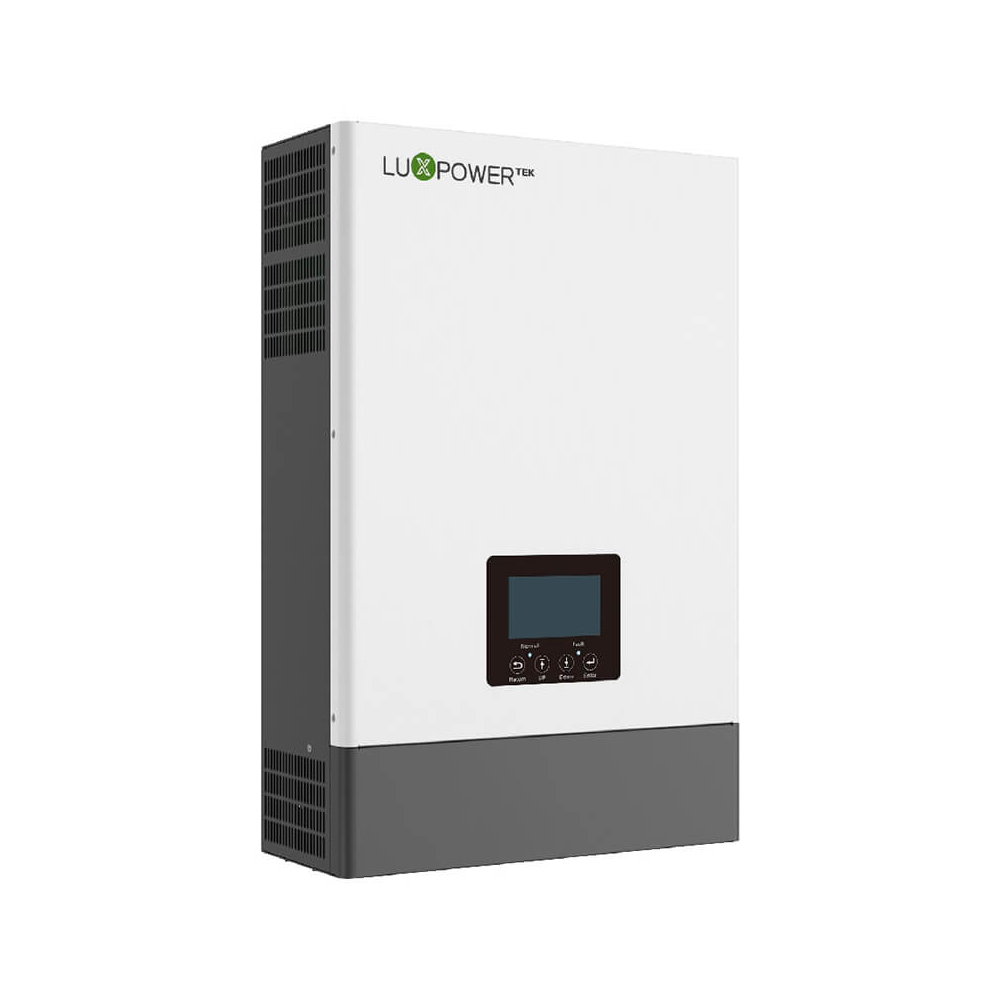

5kW Luxpower Single Phase Eco Hybrid Inverter (SNA5000)

The LuxPower SNA5000 is a versatile 5kW single-phase hybrid inverter designed for residential solar installations requiring reliable backup power and intelligent energy management. Supporting solar PV, 48V battery storage, utility grid, and generator input, the SNA5000 offers seamless operation in on-grid, off-grid, self-consumption, and backup power applications.

Featuring dual MPPT trackers, a pure sine wave output, and an ultra-fast 10ms UPS transfer time, this inverter ensures maximum solar yield while providing uninterrupted power during outages. With support for lithium-ion and lead-acid batteries, remote monitoring, and parallel operation of up to 16 units, the SNA5000 is an excellent choice for homes looking to maximise energy independence.

Key Features

• 5kW continuous single-phase hybrid inverter
• Supports on-grid, off-grid, backup and self-consumption modes
• Compatible with 48V / 51.2V lithium-ion and lead-acid batteries
• Dual independent MPPT solar charge controllers
• Pure sine wave output for sensitive appliances
• Ultra-fast UPS transfer time of <10ms
• Parallel operation of up to 16 inverters
• Generator input with intelligent control
• Operates with or without batteries in selected modes
• Remote monitoring via Wi-Fi/GPRS (optional)
• CAN & RS485 communication for lithium battery BMS
• Intelligent fan cooling for reliable operation

Technical Specifications

PV (Solar Input)

• Rated AC Output Power: 5,000W
• Maximum Recommended PV Power: 6,500W
• Number of MPPT Trackers: 2
• Strings per MPPT: 1
• Maximum PV Input Voltage: 480V DC
• MPPT Voltage Range: 120–385V DC
• Start-up Voltage: 100V DC
• Rated PV Voltage: 320V DC
• Maximum PV Input Current: 13A per MPPT
• Maximum MPPT Efficiency: >99%

Battery

• Battery Type: Lithium-ion & Lead-acid
• Nominal Battery Voltage: 48V / 51.2V
• Maximum Solar Charge Current: 100A
• Maximum AC Charge Current: 60A
• Battery Communication: CAN / RS485
• Battery Wake-Up Function: Yes

AC Output

• Rated Output Power: 5,000W / 5,000VA
• Rated Output Voltage: 230V AC
• Output Frequency: 50/60Hz
• Waveform: Pure Sine Wave
• Power Factor: 1.0
• Surge Power: 10,000VA
• Transfer Time: <10ms

Grid Input

• Rated Voltage: 230V AC
• AC Input Voltage Range: 110–280V
• Maximum AC Charging Current: 60A
• Frequency: 50/60Hz (Auto Sensing)

Efficiency

• Maximum MPPT Efficiency: >99%
• Maximum Conversion Efficiency: >98%

Protection Features

• PV Reverse Polarity Protection
• Battery Reverse Polarity Protection
• Overvoltage Protection
• Overcurrent Protection
• Short Circuit Protection
• Overload Protection
• Over-temperature Protection
• Grid Monitoring
• Intelligent Battery Management

Communication & Monitoring

• CAN Bus
• RS485
• Wi-Fi Monitoring (Optional)
• GPRS Monitoring (Optional)
• LCD Display with LED Status Indicators

General Specifications

• Cooling: Intelligent Fan Cooling
• Ingress Protection: IP20
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -15°C to +60°C
• Relative Humidity: 5–95% (Non-condensing)
• Dimensions (W × H × D): 330 × 504 × 135mm
• Weight: 14kg
• Parallel Capability: Up to 16 Units
• Warranty: 2 Years

Ideal Applications

• Residential solar systems
• Backup power during load shedding
• Off-grid homes and cabins
• Hybrid solar and battery storage systems
• Generator-assisted solar installations
• Homes looking to increase solar self-consumption
