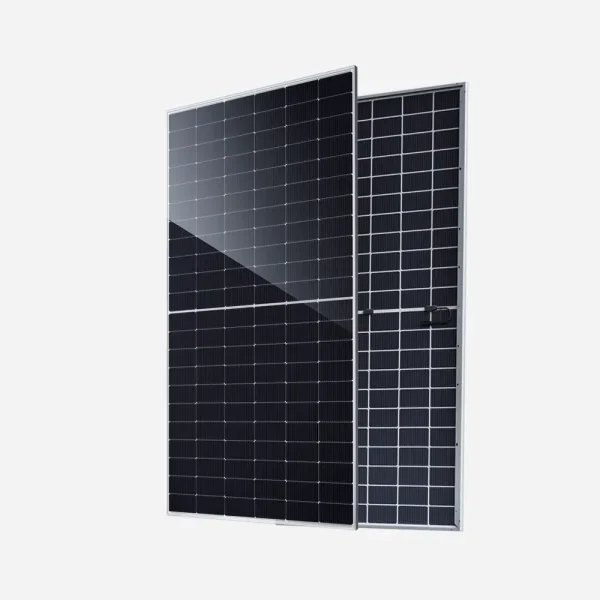

625W JA Solar N-Type TOPCon Bifacial Double-Glass
625W JA Solar N-Type TOPCon Bifacial Double-Glass
Overview
Maximize your energy yield and lower your Levelized Cost of Energy (LCOE) with the JA Solar 625W Bifacial Solar Panel (JAM66D45 LB). Built with high-performance N-Type TOPCon cell architecture and multi-busbar (MBB) half-cell engineering, this module delivers an exceptional 23.1% overall panel efficiency with cell conversion rates reaching up to 26%.
Its dual-sided (bifacial) configuration generates power from direct overhead sunlight while simultaneously harvesting light reflected onto the rear side from surrounding surfaces. Designed for maximum long-term reliability, N-type technology virtually eliminates initial Light-Induced Degradation (LID), while an optimized temperature coefficient ensures strong power output even during high ambient heat conditions.
Key Highlights
-
23.1% Module Efficiency: High power density powered by N-Type TOPCon cells with multi-busbar (MBB) design to minimize internal resistance.
-
Bifacial Energy Yield: Harvests secondary sunlight reflected off ground or roof surfaces, significantly boosting overall daily kWh production.
-
Minimal LID & PID Degradation: N-type silicon construction prevents severe initial power loss, ensuring a high 99% baseline output after Year 1.
-
Enhanced Thermal & Low-Light Performance: Maintains higher relative efficiency during cloudy days, early mornings, and high-heat peak summer months.
-
30-Year Performance Backing: Covered by a 12-year product workmanship warranty and a 30-year linear performance guarantee down to 87.4% output.
Technical Specifications
Electrical Performance (STC)
| Parameter | Value |
| Model Code | JAM66D45 LB |
| Nominal Max Power (Pmax) | 625 W |
| Module Efficiency | 23.1% |
| Max Power Voltage (Vmp) | 40.45 V |
| Max Power Current (Imp) | 15.45 A |
| Open Circuit Voltage (Voc) | 48.70 V |
| Short Circuit Current (Isc) | 16.15 A |
Mechanical & Structural Data
| Feature | Detail |
| Dimensions ($L \times W \times H$) | 2382 x 1134 x 30mm |
| Cell Tech / Type | Monocrystalline N-Type TOPCon (Bifacial) |
| Cell Architecture | Multi-Busbar (MBB) Half-Cell Configuration |
| Application Suitability | Residential, Commercial, & Utility-Scale |
Warranty & Long-Term Output
| Parameter | Terms |
| Product Workmanship Warranty | 12 Years |
| Linear Power Output Warranty | 30 Years |
| Year 1 Power Guarantee | 99.0% of initial output |
| Annual Degradation (Years 2–30) | 0.4% per year |
| Year 30 Guaranteed Output | 87.4% of initial output |
