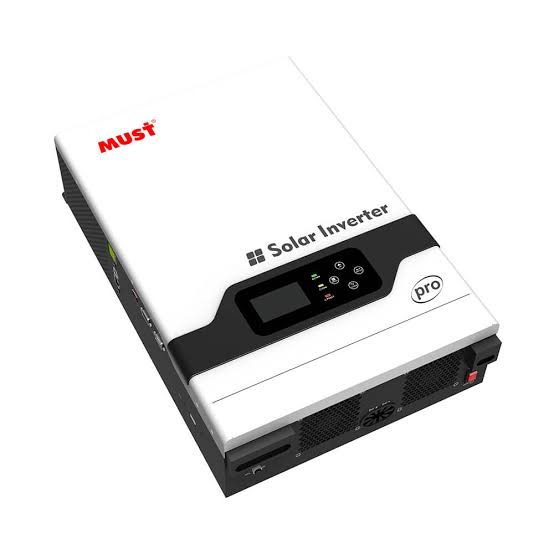

MUST 5.5kW / 5.5kVA 48V Pure Sine Wave Hybrid Inverter (100A MPPT)
MUST 5.5kW / 5.5kVA 48V Pure Sine Wave Hybrid Inverter (100A MPPT)
Overview
Power your home or small business through grid instability and load shedding with the MUST 5.5kW 48V Pure Sine Wave Hybrid Inverter. Engineered to deliver reliable, uninterrupted power, this multi-function inverter intelligently coordinates energy inputs from solar PV panels, 48V battery storage, and the utility grid to ensure continuous operation for essential appliances and sensitive electronics.
Equipped with a high-capacity 100A MPPT solar charge controller, the unit accommodates solar arrays up to 6,000W with high-voltage input capability (500V DC max), maximizing PV collection even in overcast weather. Featuring wide compatibility with both LiFePO4 lithium-ion and lead-acid battery banks, a multifunction LCD display, and optional remote Wi-Fi monitoring, the MUST 5.5kW provides a versatile, cost-effective foundation for backup and off-grid solar energy systems.
Key Highlights
-
5,500W Continuous Pure Sine Wave Output: Provides clean, distortion-free power with unity power factor (1.0) to safely run sensitive electronics, refrigerators, lighting, and office workstations.
-
100A High-Voltage MPPT Controller: Supports up to 6,000W of solar PV input with a 500V DC maximum open-circuit voltage for flexible panel string configurations.
-
Seamless Automatic Backup: Instantaneously switches between solar, battery, and grid power sources during outages or load shedding without interrupting connected loads.
-
Versatile Battery Compatibility: Fully configurable to work with $48\text{V}$ lithium-ion (LiFePO4), AGM, Gel, and flooded lead-acid battery storage systems.
-
Smart Monitoring & Remote Access: Built-in LCD screen provides real-time system metrics, with support for optional Wi-Fi or GPRS modules for mobile app monitoring.
-
Comprehensive Electrical Protection: Integrated protection circuits guard against overvoltage, output short-circuiting, thermal overload, and battery over-discharge.
Technical Specifications
Electrical & Inverter Output
| Parameter | Specification |
| Model Name | MUST 5.5kVA Hybrid Inverter |
| Rated Output Capacity | 5,500 VA / 5,500 W |
| Power Factor | 1.0 |
| Output Waveform | Pure Sine Wave |
| Nominal Output Voltage | 230V AC\pm 5% |
| Peak Efficiency | 93% |
| Transfer Time | 10ms (Computers) / 20ms (Home Appliances) |
Solar PV & MPPT Properties
| Feature | Detail |
| Solar Charger Type | Built-in MPPT |
| Max PV Array Input Power | 6,000W |
| Max PV Open Circuit Voltage (Voc) | 500V DC |
| Max Solar Charge Current | 100 A |
| Max AC Charge Current | 60 A – 80 A |
Battery & DC System Data
| Parameter | Specification |
| Nominal Battery Voltage | 48V DC |
| Supported Battery Chemistries | Lithium-ion (LiFePO4), Gel, AGM, Lead-Acid |
| Charging Algorithm | Multi-stage (CC / CV / Float) |
| Communication Interfaces | RS232 / USB / Dry Contact |
Physical & Environmental Properties
| Feature | Detail |
| Unit Dimensions (L x W x H) | 470 x 330 x 135mm |
| Net Weight | Approx. 13.0kg - 15.0kg |
| Operating Temperature Range | -10'C to +50'C |
| Remote Monitoring Support | Optional Wi-Fi / GPRS Expansion Module |
| Primary Applications | Load Shedding Backup, Off-Grid Residential, Home Offices & Small Retail |
