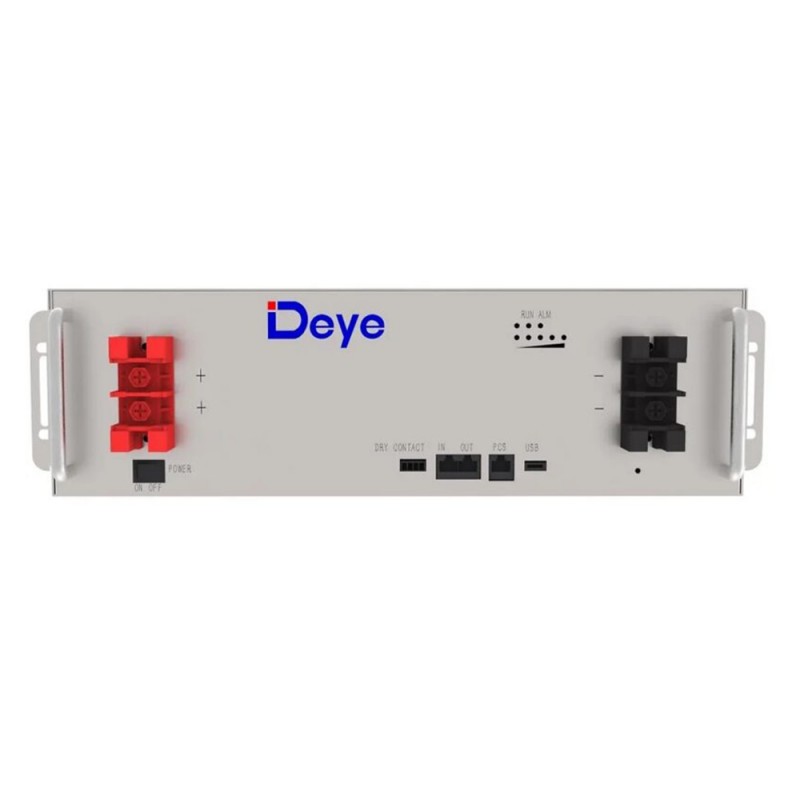

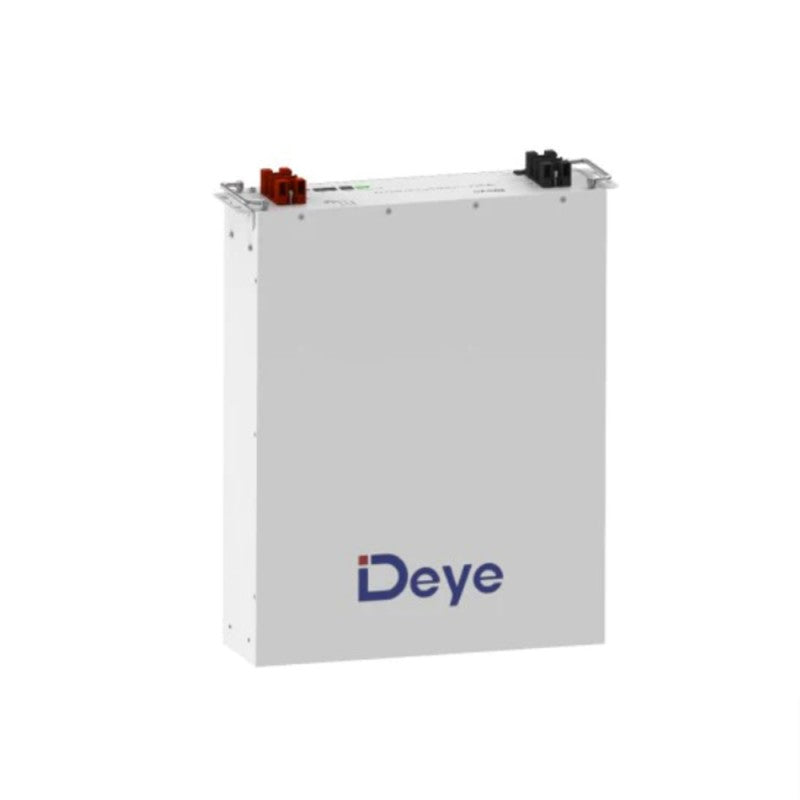

Name: 5.3kWh Deye (SE-G5.3) 51.2V Low Voltage Rack-Mount LiFePO4 Battery (104Ah, 3U Rack, 6000+ Cycles)
Brand: Deye
Price: 14500.00 ZAR
Availability: InStock

5.3kWh Deye (SE-G5.3) 51.2V Low Voltage Rack-Mount LiFePO4 Battery (104Ah, 3U Rack, 6000+ Cycles)

R 14,500.00 ZAR

5.3kWh Deye (SE-G5.3) 51.2V Low Voltage Rack-Mount LiFePO4 Battery (104Ah, 3U Rack, 6000+ Cycles)

R 14,500.00 ZAR

Taxes included. Shipping calculated at checkout.

Overview

Secure continuous energy independence for your home or office with the Deye 5.3kWh 51.2V LW LiFePO4 Lithium Battery (SE-G5.3). Built using cobalt-free Lithium Iron Phosphate chemistry, this compact 3U server-rack-style battery offers outstanding thermal stability, enhanced fire safety, and reliable daily cycling for 48V/51.2V low-voltage hybrid inverter systems.

Engineered with a 104Ah nominal capacity and providing 4.79kWh usable energy at 90% Depth of Discharge, the SE-G5.3 is versatile enough for wall-mounting, floor-stacking, or fitting directly into standard 19-inch server racks. Equipped with CAN 2.0 and RS485 communication protocols, it communicates seamlessly with Deye and Sunsynk inverters and supports massive scalability up to 64 units in parallel for a combined capacity of approximately 340kWh.

Key Highlights

High Usable Storage Capacity: Delivers 4.79kWh usable energy (5.32kWh total nominal capacity) at a recommended 90% Depth of Discharge.
Standard 3U Rack-Mount Form Factor: Compact dimensions ( $440 \times 560 \times 133\text{ mm}$ ) allow for neat installation in standard 19-inch server equipment racks, wall enclosures, or stacked floor mounts.
Cobalt-Free LiFePO4 Chemistry: Ensures superior chemical safety, high power density, and zero maintenance over a 10+ year design life.
150A Peak Discharge Surge: Handles demanding startup currents with a 150A peak discharge capacity for up to 2 minutes ( $25^\circ\text{C}$ ).
Massive Parallel Scalability: Supports up to 64 modules connected in parallel without needing complex external controllers, reaching system capacities up to $340\text{ kWh}$ .
Seamless Inverter Integration: Native CAN 2.0 and RS485 communication ports synchronize instantly with Deye, Sunsynk, and other top-tier 48V hybrid inverters.

Technical Specifications

Capacity & Electrical Performance

Parameter	Specification
Model Name	Deye SE-G5.3
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Energy Capacity	$5.32\text{ kWh}$
Usable Energy Capacity	$4.79\text{ kWh}$ ( $90\%$ DoD)
Nominal Ah Capacity	$104\text{ Ah}$
Nominal Voltage	$51.2\text{V DC}$
Operating Voltage Range	$43.2\text{V DC} - 57.6\text{V DC}$
Recommended Charge/Discharge Current	$50\text{ A}$
Max Continuous Charge/Discharge Current	$100\text{ A}$
Peak Discharge Current	$150\text{ A}$ ( $2\text{ minutes}$ @ $25^\circ\text{C}$ )
Cycle Life	$\ge 6,000\text{ Cycles}$ @ $90\%$ DoD ( $25^\circ\text{C}$ , 0.5C)

BMS, Communication & Scalability

Feature	Detail
Integrated BMS Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Temp Safeguards
Communication Ports	CAN 2.0 / RS485
Max Parallel Units	Up to 64 Modules (Max total capacity $\approx 340\text{ kWh}$ )
Design Lifespan	10+ Years
Depth of Discharge (DoD)	$90\%$ Recommended

Physical, Environmental & Compliance

Feature	Detail
Form Factor / Height	Standard 19-inch Rack Chassis (3U Height)
Dimensions ( $W \times D \times H$ )	$440 \times 560 \times 133\text{ mm}$
Net Weight	Approx. $44.0\text{ kg}$
IP Enclosure Rating	IP20 (Indoor / Rack Enclosure environment)
Mounting Options	19-inch Server Rack, Wall-Mounted Bracket, or Floor-Stacked
Safety & Testing Certifications	UN38.3, IEC62619, CE, UKCA
