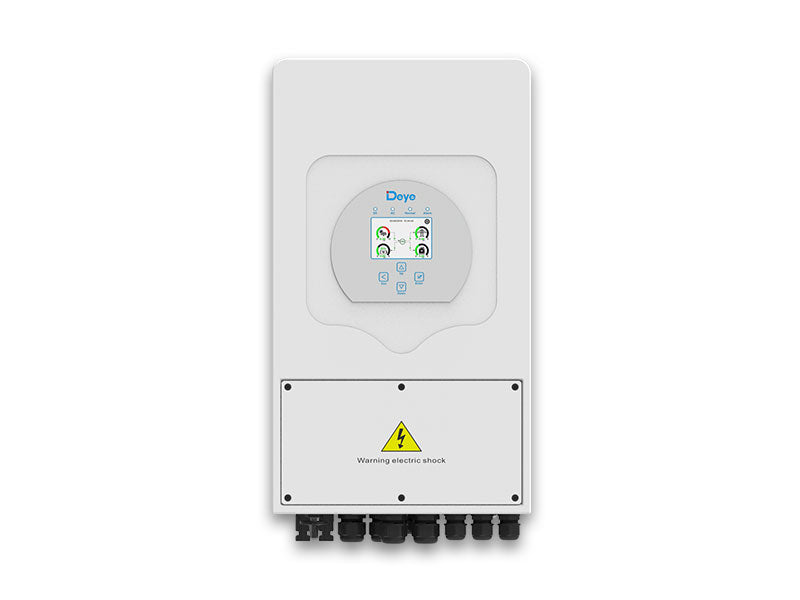

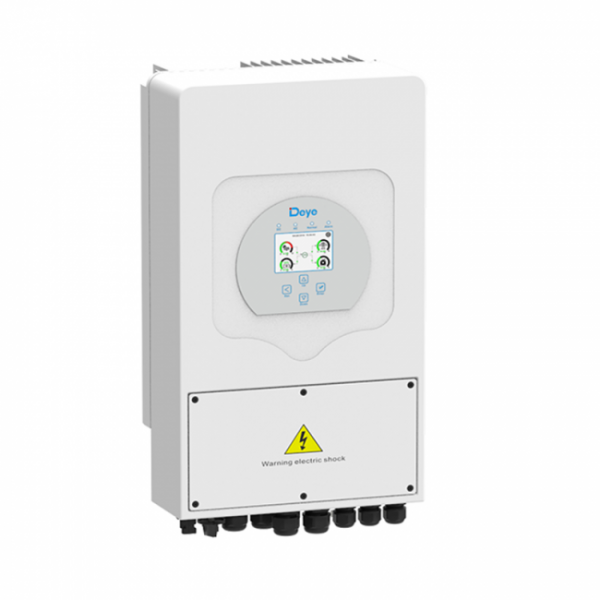

5kW Deye Single-Phase Hybrid Inverter
5kW Deye Single-Phase Hybrid Inverter
The Deye 5kW Single-Phase Hybrid Inverter (Model: SUN-5K-SG01/03LP1-EU) is a market-leading, multi-functional inverter highly sought after for residential and small business solar setups.
🌟 Value Proposition
The Deye 5kW is an all-in-one hybrid powerhouse that seamlessly manages Solar PV, Battery Storage, Grid Power, and even Auxiliary Power (like a Generator) simultaneously. It is highly favored for its elite power efficiency, robust smart load management, and outstanding scalability.
🛠️ Key Features
-
Dual MPPT Trackers: Allows for flexible roof installations (e.g., East/West panel configurations) to maximize daily solar harvesting.
-
Massive Solar Oversizing: Supports a maximum DC input power of up to 6,500W (some newer model variations support higher), allowing customers to pack on more panels for low-light performance.
-
Ultra-Fast UPS-Grade Switching: Automatically switches from grid-tied to battery backup mode in under 5 milliseconds, ensuring sensitive electronics (routers, PCs) do not reset during a power cut.
-
Smart Load / Extra AC Port: Features a highly versatile, configurable auxiliary port. It can be used as a Generator Input, an AC-coupled input to retrofit an existing older solar system, or a Smart Load Output to intelligently route excess solar power to heavy, non-essential appliances like geysers or pool pumps.
-
Unrivaled Scalability: Supports up to 16 units in parallel for both on-grid and off-grid configurations, meaning customers can scale up to a massive 80kW system down the line.
-
Zero-Export Functionality: Includes an external CT (Current Transformer) clamp out of the box, allowing users to limit or completely block power export to the municipal grid where regulations strictly forbid it.
📊 Technical Highlights & Important Specifications
| Property | Specification Value |
| Rated AC Output Power | 5,000 Watts (Continuous) |
| Peak Surge Power | 10,000 Volt-Amps (for 10 seconds to start motors/compressors) |
| Battery Voltage Range | 48V Nominal (Low Voltage range: 40V to 60V) |
| Max Charge/Discharge Current | 120 Amps (Rapidly fills and drains matching lithium banks) |
| Battery Compatibility | Self-adapting BMS communication for leading Lithium-Ion brands (Deye, Hubble, Dyness, Shoto) and standard Lead-Acid setups. |
| Max Efficiency | 97.6% (Ultra-low energy waste) |
| Enclosure Rating | IP65 Certified (Dustproof and waterproof; safe for indoor or outdoor wall installation) |
| Monitoring | Includes a complimentary Wi-Fi Dongle for remote tracking via the Deye Cloud App / Web Browser. |
Important Warranty & Installation Notice
Please Note: To qualify for the full manufacturer’s warranty, all solar inverters, lithium batteries, and solar panels must be installed by a qualified, registered electrical contractor or a certified solar installer.
-
Compliance: The installation must be carried out in strict accordance with local electrical regulations and SANS wiring codes.
-
Documentation: A valid Certificate of Compliance (CoC), along with the installer’s registration details and commissioning checklist, is required to lodge any future warranty claims with the manufacturer.
-
Disclaimer: Sol-Africa Solutions cannot be held liable for product failures, damages, or voided warranties resulting from incorrect DIY installations, unauthorized system tampering, or substandard electrical workmanship.
